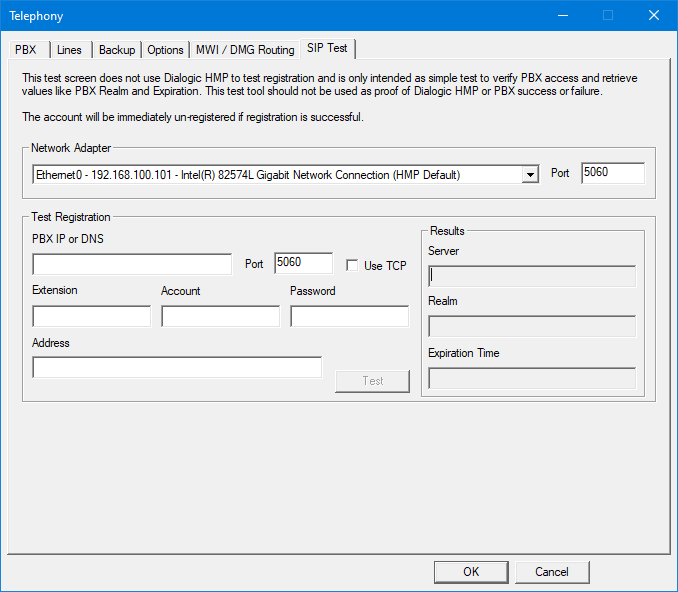

This tab can be used to verify registration or items like realm and expiration times configured on the PBX. This TAB is hidden while the system is running in order to prevent any issues with the telephony lines.
| Setting | Description |
| Network Adapter | This lists all the network adapters and their IP address. Choose the one which you want to perform the test on. |
| Port | This is the IP port which the test will use to listen for packets from the PBX. |
| Setting | Description |
| PBX IP or DNS | Enter the IP address or DNS name of the PBX. |
| Port | Enter the IP port which to the PBX is listening on for SIP. |
| Use TCP | Typically SIP uses UDP. If the PBX is configured to use TCP check this box. |
| Extension | Enter the extension you wish to test registration with. |
| Account | Enter the account username or number for registration. Typically this is the same as the extension. |
| Password | Enter the password for the account. |
| Address | This will display the address which the test will use for registration. You can edit it prior to the test if you need to. |
| Setting | Description |
| Server | This will be the agent name of the PBX. |
| Realm | This is the realm which the PBX is configured for. |
| Expiration Time | Suggested expiration time given to us by the PBX. |
