Form Post
This interface uses a simple HTTP form post method used by many web based interfaces to send this information to a remote host. This remote host may be located on the local network or even on a remote server on the internet. The host may be written in any language suitable for the remote party, this includes PHP, C#, and C/C++.
Requirements
- PBX Link License.
- DuVoice 5.20 or above.
Revision History
| Version | Released | Changes |
| 200 | 2018/01/30 | - Added support for resources and other settings. |
| 102 | 2015/12/10 | - Added support for sending call blocking / DND state. |
| 101 | 2013/10/15 | - Changed the configuration dialog to support a timeout. - Combined URL, Resource and TCP/IP port. - MWI On/Off posting. |
| 100 | 2013/04/10 | Initial release |
Configuration

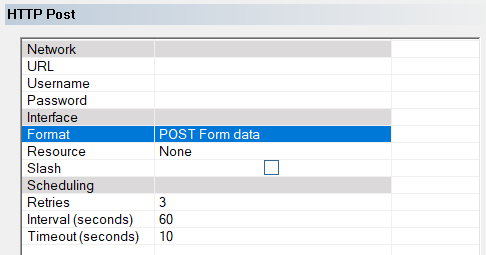

Using System Configuration, configure the PBXLink for your profile as HTTP Post.
| Setting | Default | Description |
|---|---|---|
| URL | Blank | Enter full URL to post items to. Examples: http://127.0.0.1:8080/pbx or https://127.0.0.1:8080/pbx |
| Username | Blank | If using authentication enter username. |
| Password | Blank | If using authentication enter password. |
| Format | POST Form Data | Type of data to post to server. |
| Resource | None | Can be used to add a mailbox or extension automatically as part of the URL. Example: http://127.0.0.1:8080/pbx/7101 |
| Slash | Unchecked | Add addtional slash at end of URL. |
| Retries | 3 | Number of retries before giving up. |
| Interval (seconds) | 60 | Number of seconds to wait between retries. |
| Timeout (seconds) | 10 | Number of seconds to wait for response from server. |
Response Errors
| HTTP Code | Description |
|---|---|
| 200 | Success. |
| 401 | Not authorized. Postings will not be retried. |
| 404 | Failure. Posting will not be retried. |
| Other | Will attempt retry. |
Syntax
Field Descriptions
All field values use standard HTTP escaping for characters like spaces and punctuation marks.
| Field | Required | Description |
| room | Yes | Mailbox extension |
| fname | No | First name |
| lname | No | Last name |
| fullname | No | Full name for those systems which prefer or only support a single name field. The default format is LNAME, FNAME but can be modified on the DuVoice system. |
| group | No | Phone restriction group extension should be associated with. This can also be considered the class of service on your PBX. |
| state | No | State for the guest room. in - Room is currently checked in. out - Room is currently checked out. |
| description | No | Mailbox description field. |
| mwi | No | Message waiting indicator state. 0 - Light OFF. 1 - Light ON. Note: For MWI's to be sent out this interface the Method for MWI Notifications should be set to HTTP or HTTP + PMS. |
| dnd | No | Call Blocking / DND 0 = Call blocking DND off. 1 = Call blocking DND on. |
Examples
POST /pbx Date: 2018-02-08T21:56:01Z User-Agent: DuVoice/6.01.21 HTTPPOST/200 Content-Length: 73 Content-Type: application/x-www-form-urlencoded Connection: Close Host: 127.0.0.1:8080 room=7101&fname=Brock&lname=Sampson&fullname=Sampson%2C%20Brock&state=out
