Mailbox Record
This interface uses posts most of the mailbox record to the server as a JSON object. This remote host may be located on the local network or even on a remote server on the internet. The host may be written in any language suitable for the remote party, this includes PHP, C#, and C/C++.
Requirements
- PBX Link License.
- DuVoice 6.03 or above.
Revision History
| Version | Released | Changes |
| 201 | 2021/03/25 | Added custom information field for mailbox record. |
| 200 | 2019/10/10 | Added number of attempts, post_date, and post_time for better tracking and reporting. |
| 200 | 2019/08/20 | Added arrival, departure, check in, and check out dates. |
| 200 | 2018/01/30 | Initial release |
Configuration

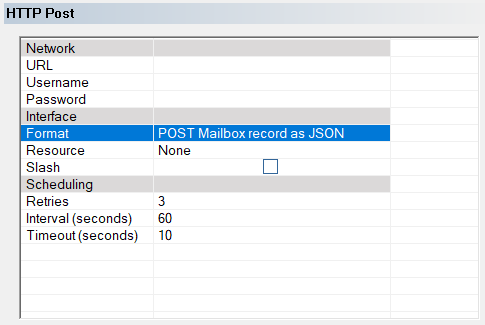

Using System Configuration, configure the PBXLink for your profile as HTTP Post.
| Setting | Default | Description |
|---|---|---|
| URL | Blank | Enter full URL to post items to. Example: http://127.0.0.1:8080/pbx |
| Username | Blank | If using authentication enter username. |
| Password | Blank | If using authentication enter password. |
| Format | POST Form Data | Type of data to post to server. |
| Resource | None | Can be used to add a mailbox or extension automatically as part of the URL. Example: http://127.0.0.1:8080/pbx/7101 |
| Slash | Unchecked | Add additional slash at end of URL. |
| Retries | 3 | Number of retries before giving up. |
| Interval (seconds) | 60 | Number of seconds to wait between retries. |
| Timeout (seconds) | 10 | Number of seconds to wait for response from server. |
Response Errors
| HTTP Code | Description |
|---|---|
| 200 | Success. |
| 401 | Not authorized. Postings will not be retried. |
| 404 | Failure. Posting will not be retried. |
| Other | Will attempt retry. |
Syntax
Field Descriptions
| Name | Type | Description |
|---|---|---|
| arrivaldate | timestamp | The arrival date for this room. |
| attempts | integer | Zero based number of attempts. |
| callScreening | bool | Is call screening enabled. Also known as DND |
| cos | string | Class of service name. |
| checkindate | timestamp | Last time room was checked in. |
| checkoutdate | timestamp | Last time room was checked out. |
| created | timestamp | When the mailbox was created. |
| custominfo | object | Container of custom data added via REST API or DuVoice. |
| departuredate | timestamp | The departure date for this room. |
| description | string | Description field. |
| directory | bool | Is the mailbox listed in the telephone directory. |
| dnd | bool | Is call screening enabled. Also known as DND |
| extensions | array | Array of extensions associated with mailbox. |
| firstName | string | First name of mailbox. |
| greeting | Number | Greeting number of mailbox. |
| guestinfo | object | Container of room data added via REST API or DuVoice. Deleted at check in and out. Follows guest on room move. |
| id | string | Mailbox number. Mailbox numbers may be prefixed with zeros. |
| language | int | Language set for room. 0 = System Default, otherwise language number. |
| lastLogin | timestamp | When the mailbox user last logged in. |
| lastName | string | Last name of mailbox. |
| maidstatus | int | Maid status of the room. |
| modified | date | When was the mailbox last modified. |
| mwi | bool | Will only be sent on MWI change. |
| occupied | bool | True if occupied, otherwise false. |
| pmsGuest | string | Guest ID used for some PMS systems. |
| pmsGroups | array | List of Group mailboxes room is a member of. |
| post_date | string | Date we posted this record. |
| post_time | string | Time we posted this record. |
| restriction | int | Room restriction setting. |
| roominfo | object | Container of room data added via REST API or DuVoice. Deleted at check in and out. |
| tenant | string | Tenant ID for this mailbox. |
| textcount | int | Number of text messages for this room. |
| title | string | User title of the mailbox. Typically Mr or Mrs. |
| tutorial | bool | Is mailbox tutorial enabled. |
| type | int | Mailbox type. |
| vip | bool | Is the guest VIP. |
Example
POST /httppost HTTP/1.1 Date: 2021-03-25T18:31:53Z User-Agent: DuVoice/7.1.21 HTTPPOST/201 Content-Length: 1022 Content-Type: application/json Connection: Close Host: 127.0.0.1:8080 { "arrivaldate" : "", "attempt" : 0, "callScreening" : false, "checkedindate" : "20210325101522623", "checkedoutdate" : "", "cos" : "guest", "created" : "20190604215303759", "custominfo" : { "bed_type" : "King", "dbid" : "122349d9dlda93" }, "departuredate" : "", "description" : "Polycom vx500", "directory" : true, "dnd" : true, "extensions" : [ "7101" ], "firstName" : "Brock", "greeting" : 0, "guestinfo" : { "ccard" : "123456781234" }, "id" : "7101", "language" : 0, "lastLogin" : "", "lastName" : "Sampon", "maidStatus" : 0, "modified" : "20210325113152783", "occupied" : true, "pmsGroups" : [ "0120210325", "8000" ], "pmsGuest" : "", "post_date" : "20210325", "post_time" : "11:31:53", "restriction" : "", "roomid" : "1-7101", "roominfo" : { "maid_note" : "Double snacks" }, "tenant" : "8b9a6860-4a38-11e7-b52d-902b34db254e", "textCount" : 0, "title" : "Mr.", "tutorial" : false, "type" : 5, "vip" : true }
