PCIe to 4x PCI slot Expansion Box
Identifications
| Part number | PCIEXPBOX |
| Technical part number | CG-PCIePCIX4 |
| Production start | November 2018 |
| Production end |
Specifications
- Supports 1-lane 2.5Gb/s PCI Express Data Transfer Rate.
- Expands 4 PCI 32-bit 33MHZ PCI Express Slot.
- PCI slots are fully PCI Bus Rev. 2.3 Compliant.
- Supports both 5V and 3.3V PCI Add-in Cards.
- Low profile version is available (optional) by changing the short bracket of the host PCI Express Card
- 12VDC AC Power Adapter is required.
- Dimensions: 15.0in(L) x 5.625in(H) x 5.375in(W)
Package Contents
- Metal Expansion Box
- Add-in PCIe Host Card x 1
- DVI like Expansion Cable x 1
- 12VDC/AC Power Adapter x 1
- Driver CD x 1 (Not needed)
- Installation Guide x 1

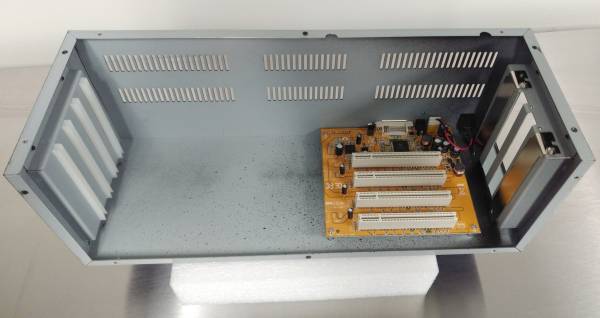

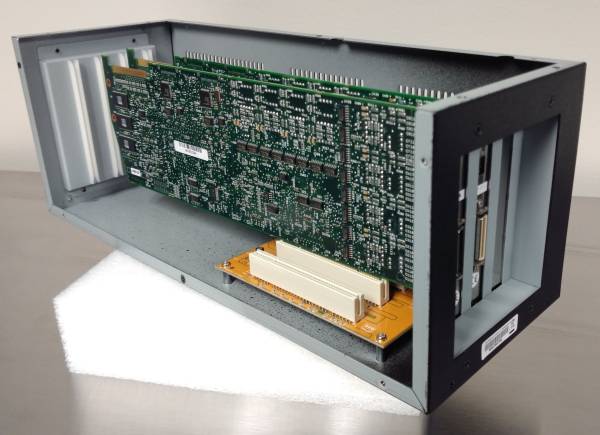

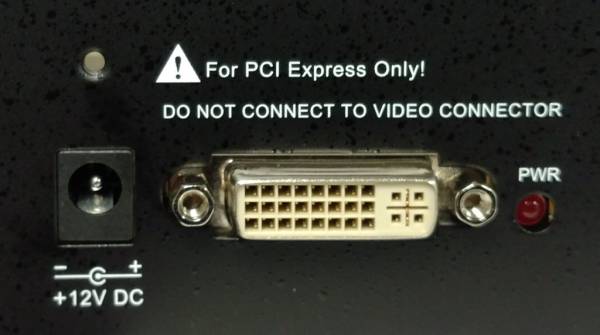

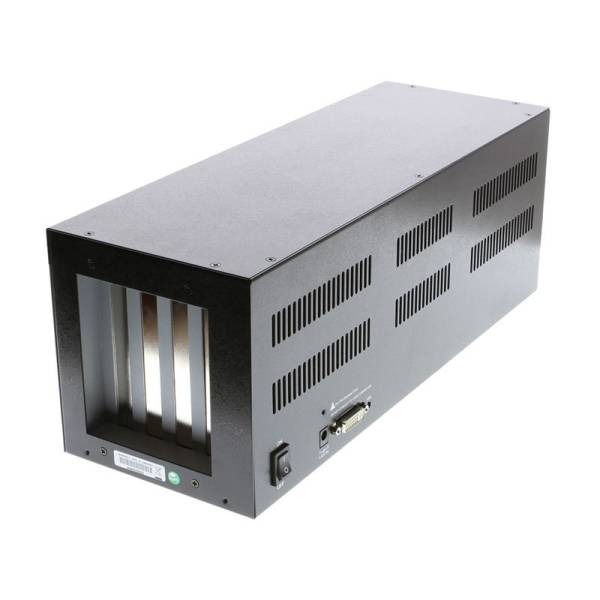

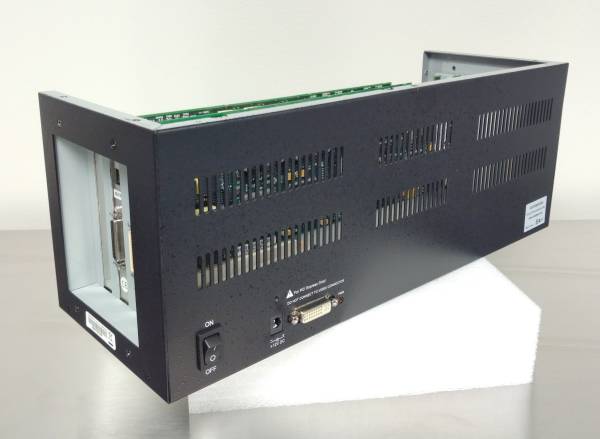

Images
