Metaswitch

• Configuring DuVoice as a Metaswitch CFS Application Server.
  • Telephony integration done with a Metaswitch CFS using a SIP Application Server.
  • Hospitality integration using the MetaSphere EAS CommPortal connection.
• The DV2000 provides Metaswitch a suite of hospitality features including an interface to the hotel PMS system:
  • Guest information
  • Guest voice messaging
  • Wake-up call
  • Housekeeping room status reporting.

• Subscriber name change.
• Call Bar enable/disable based on state of room using hospitality groups.
• DND enable/disable.
• Support for multiple business groups.
• Message light controls.
• Room status /maid code live update.
• Guest and staff personal voicemail.
• Wake-up call scheduling and alerting.

• Metaswitch 9.0 or above.

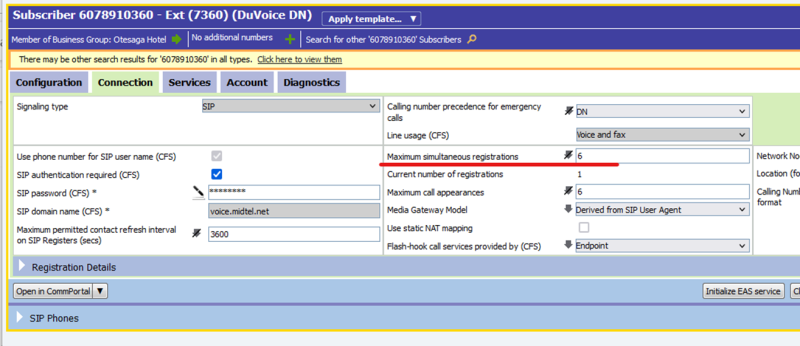

• One Metaswitch SIP Extension per 150 rooms.
• MetaSphere EAS (CommPortal).
• A Metaswitch Level 3 SIP Trunk to DuVoice if using SIP trunking instead of SIP extensions.

• DuVoice v7.2+

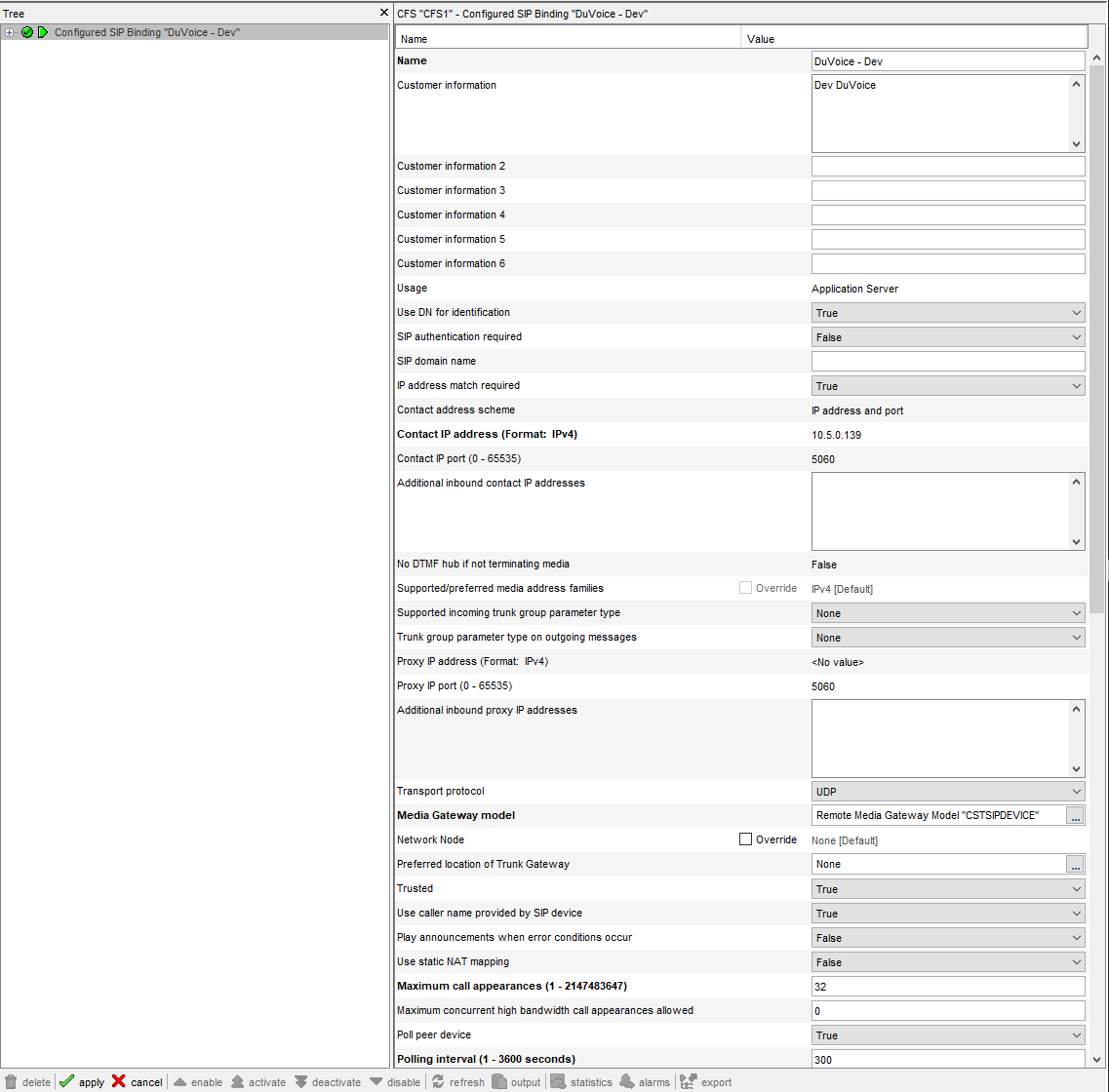

• Create a Configured SIP Binding (CSB) that points to the DuVoice server.
  • Set Usage to Application Server.
  • Configure Use DN as appropriate for the deployment for:
    • identification
    • SIP authentication (if required)
    • Contact IP/address
    • Contact Port
    • transport
    • Remote Media Gateway Model (RMGM)
      • If an existing RMGM does not match the DuVoice requirements, create a new one.
  • Example image:

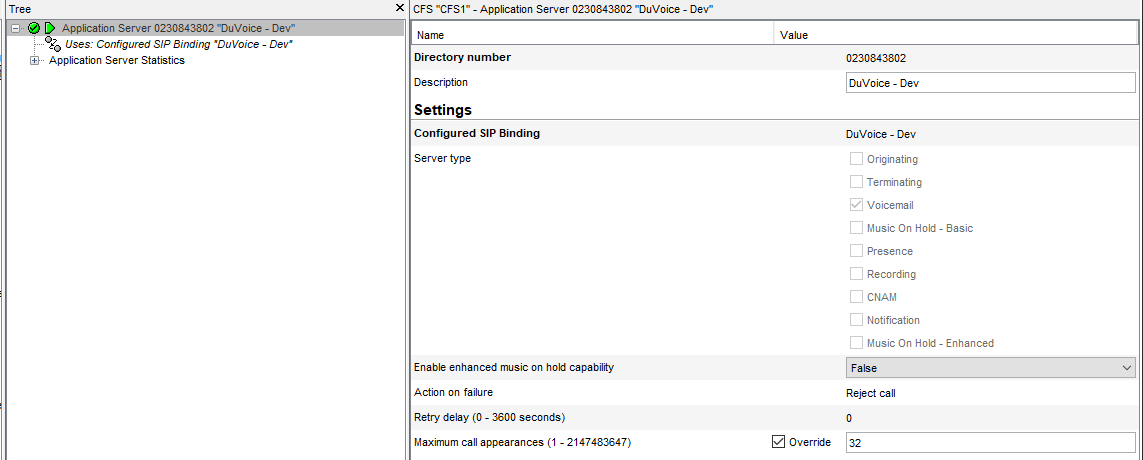

• Create the Application Server using the CSB from previous step.
• Assign a Directory Number (DN) to the Application Server
  • Use that same DN in the DuVoice configuration.
• Set Server type to Voicemail.
• Example image:

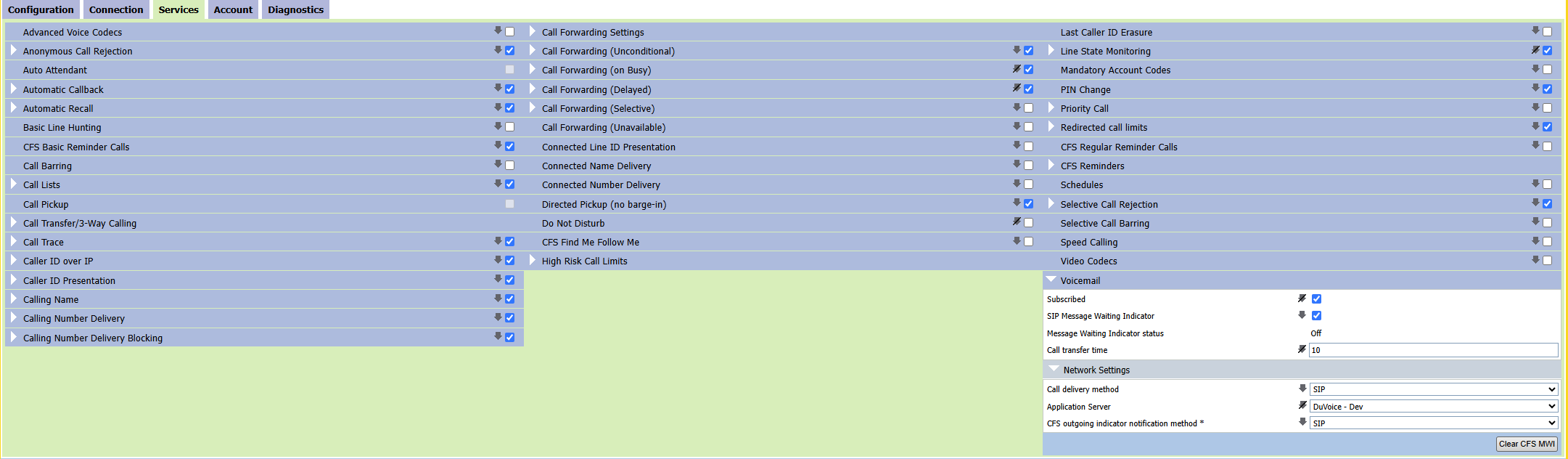

• Assign the appropriate subscriber DNs to use the DuVoice Application Server.
  • This can be configured as a direct override on individual DNs or through a persistent profile.
    • Depending on how the CFS is administered.
• Example image:

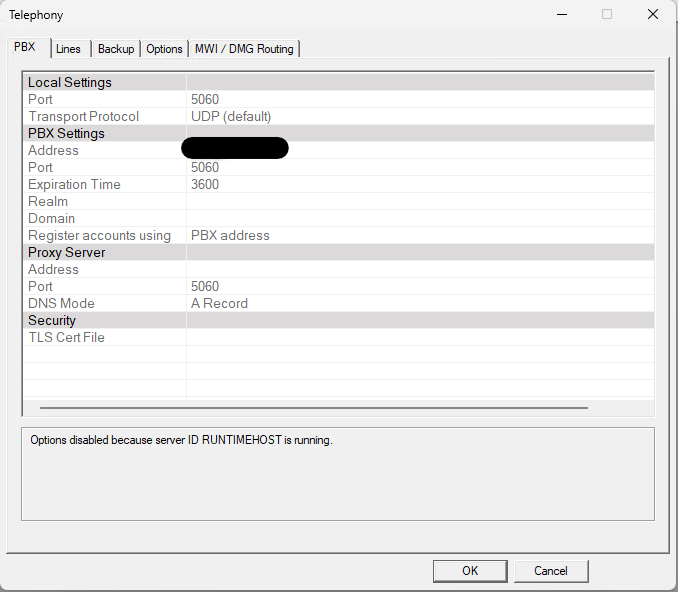

• The DuVoice PBX Address is the DNS name of the CFS.
  • A direct IP address may also work when appropriate for the network and SIP configuration.
• Example image:

• Example image:

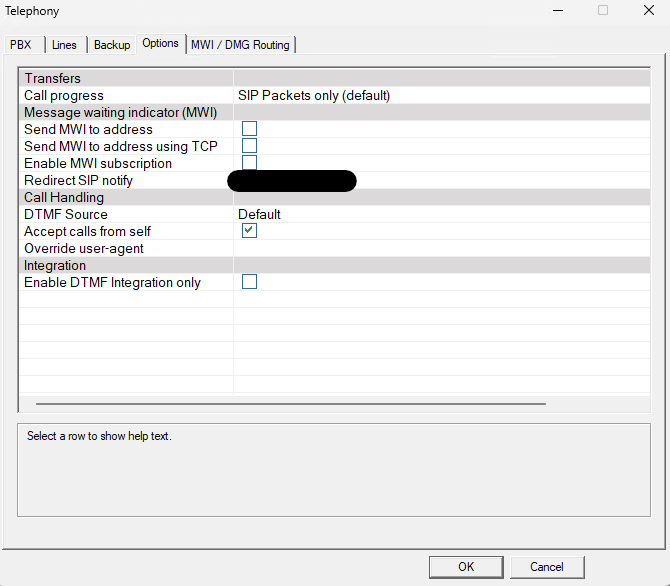

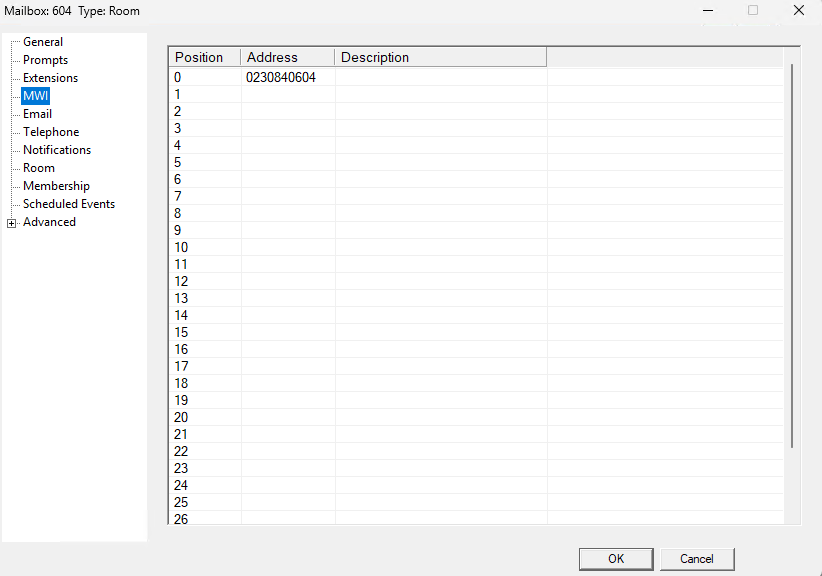

• Configure MWI
  • Redirect SIP notify
• Example image:

• Example image:

• Example image:

• Example image:

There are three different MetaSphere API interfaces that are available for hospitality guest phone call controls and name changes from the DV2000 server.

• Network-Wide Web Services API
  • Preferred
• MetaSphere EAS API
  • Not Preferred
• MetaView Web Services
  • Least Preferred

• This interface is the suggested method of integration.
  • This interface must be used for any Clustered CFS deployments which can be an advantage for many hosted solutions.
  • It also doesn't require any specific steps to enable the Network-Wide Web Services API.
  • It is Automatically available on any MetaView Server or MetaSphere EAS server that is running MetaView Web.
• Requirements:
  • User account can be any MetaView Web user with the option “Can use Network-Wide Services API” enabled.
  • Create a username and password.

AKA CommPortal JSON API.

• The CommPortal JSON API is available to use if the Network-Wide API is not available or wanted.
• This API provides the DuVoice with all features using a username and password.
• Requirements:

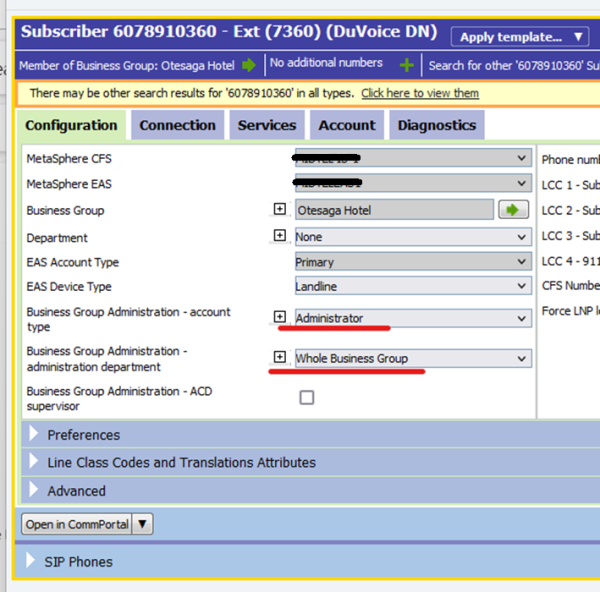

  • User account making changes must be an EAS Administrator for the Business Group.
  • For hospitality phone controls.

• Not commonly used
  • This API is the original API supported by DuVoice
  • Requirements:
    • MetaView Web Services enabled.
    • Issues:
      • This is a “trusted” API and there is no security or authentication.
      • If you enable this interface, make sure you restrict access to it.
        • For example by using a firewall to restrict access to the TCP port it uses 8080.

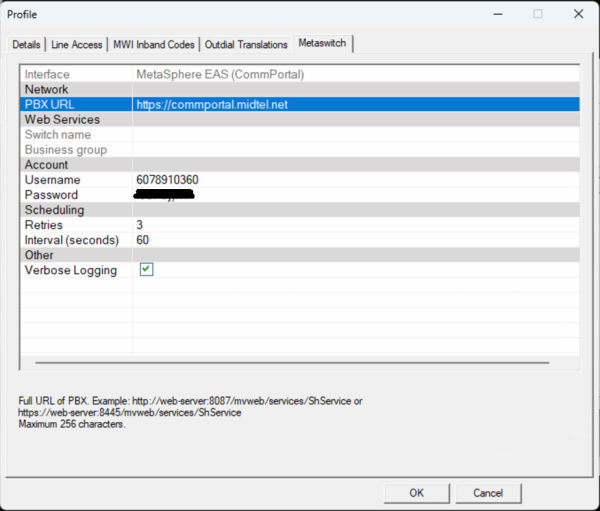

• Using DV2000 Manager:
  • Select: Site.
  • Select: Profiles.

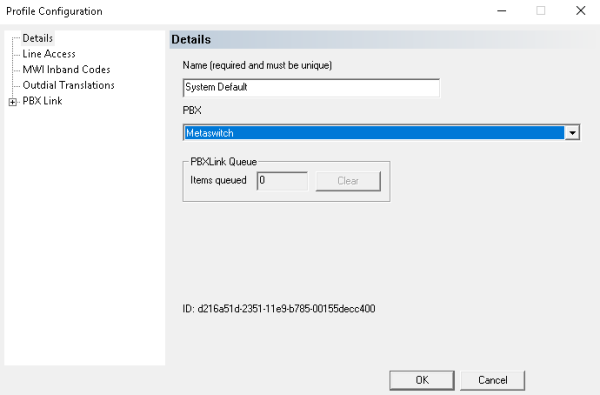

    • Under Details:
      • Select: Metaswitch.

DuVoice PBX-LINK (CommPortal) for Metaswitch integration can be found here.

• After configuration, verify the complete call and MWI path:
  • Call a subscriber DN from an external number and leave a voicemail.
  • Call the same subscriber from an internal extension and leave a voicemail.

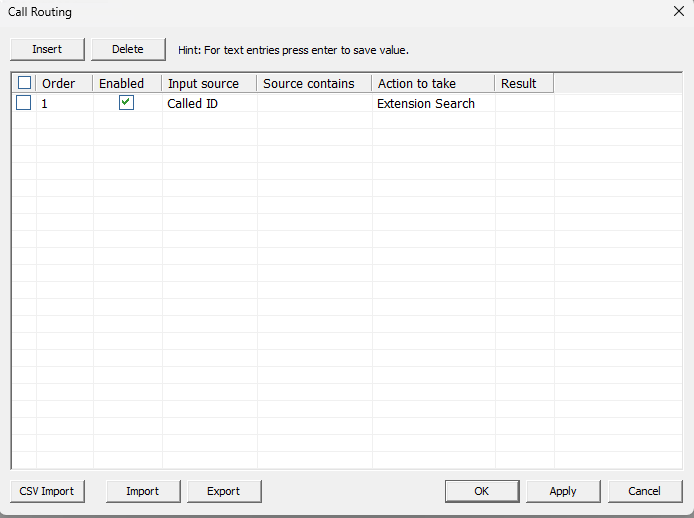

  • Confirm DuVoice maps the called number to the correct mailbox.
  • Confirm the CFS accepts the DuVoice SIP NOTIFY and the phone displays MWI.
  • Delete or listen to the message and confirm the MWI clears.
