Alcatel OXO
The DuVoice 7.00 can link to an Alcatel OmniPCX Enterprese (OXO) PBX using a TCP connection where the PBX is the server. This link uses the protocol and features listed in the table below:
| Link Type | Protocol Used | Log File Prefix | Features Supported |
|---|---|---|---|
| TCP Client | OHL (version R2.3.8, edition 2.1) | ALCATELOXO | Check In, Check Out, Name Change, Language, Maid Status, Controlled Restriction, DND |

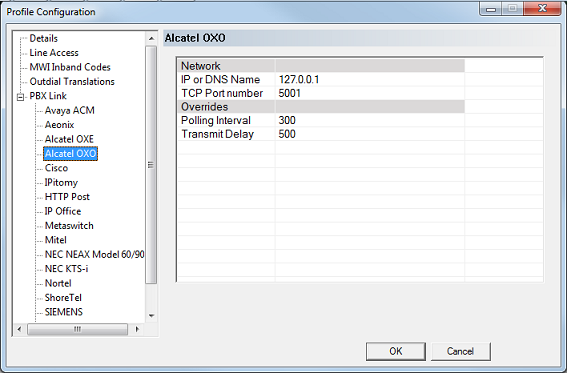

This page is used to configure the 7.00's link to the Alcatel OXO.
The settings are grouped into two categories: Network and Overrides. Configure the settings as needed and then click OK to save your changes and close the dialog. Or click Cancel to discard any changes and close the dialog.
Network Settings
| Setting | Default | Description |
|---|---|---|
| IP or DNS Name | (blank) | Enter the IP address of the PBX. |
| TCP Port number | 5001 | Enter the port number to connect to on the PBX. |
Overrides
| Setting | Default | Description |
|---|---|---|
| Polling Interval | 300 | Enter the number of seconds to wait between polling (keep-alive) messages. Ideally, this should not be less than 60 seconds unless the PBX requires it. |
| Transmit Delay | 500 | Enter the time, in milliseconds, that the voice server should wait after sending a message (and receiving the ACK response) before it can send another message. The default is 500 ms (half a second). If the PBX is getting overwhelmed, you can increase this value to artificially slow the pace of message traffic. |
