Panasonic KX-NS (FOSI)
The DuVoice 7.00 can link to an Panasonic KX-NS1000 PBX using a TCP connection where the PBX is the server. This link uses the protocol and features listed in the table below:
| Link Type | Protocol Used | Log File Prefix | Features Supported |
|---|---|---|---|
| TCP Client | Panasonic FOSI | PANASONICFOSI | Check In, Check Out, Room Move, Name Change, Language, Maid Status, Controlled Restriction, DND |

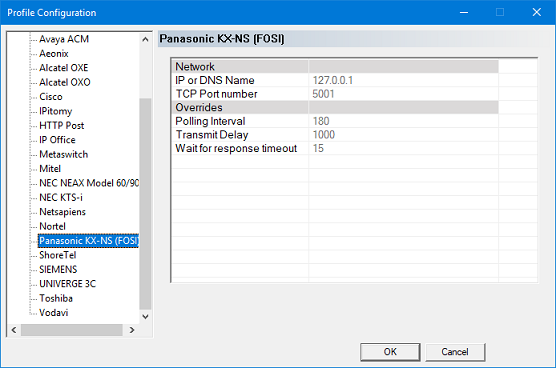

This page is used to configure the 7.00's link to the Panasonic KX-NS1000.
The settings are grouped into two categories: Network and Overrides. Configure the settings as needed and then click OK to save your changes and close the dialog. Or click Cancel to discard any changes and close the dialog.
Network Settings
| Setting | Default | Description |
|---|---|---|
| IP or DNS Name | (blank) | Enter the IP address of the PBX. |
| TCP Port number | 5001 | Enter the port number to connect to on the PBX. |
Overrides
| Setting | Default | Description |
|---|---|---|
| Polling Interval | 300 | Enter the number of seconds to wait between sending keep-alive messages. Ideally, this should not be less than 60 seconds unless the PBX requires it. Setting this value to 0 will disable polling altogether (however, the PBX may send keep-alive messages itself). |
| Transmit Delay | 500 | Enter the time, in milliseconds, that the voice server should wait after sending a message (and receiving the ACK response) before it can send another message. The default is 500 ms (half a second). If the PBX is getting overwhelmed, you can increase this value to artificially slow the pace of message traffic. Setting this value to 0 will disable the transmit delay so that the 7.00 will send messages as fast as possible. |
| Wait for response timeout | 15 | Enter the number of seconds to wait for a response after sending a message and before assuming the PBX will not respond. Vaild range is 5 to 30 seconds. |
