SIEMENS
The DuVoice 7.00 can connect to a SIEMENS OpenScape PBX using TCP/IP. This link uses the protocol and features listed in the table below:
| Link Type | Protocol Used | Log File Prefix | Features Supported |
|---|---|---|---|
| TCP Client | SIEMENS SOAP interface | SIEMENS | Name Change, Set user rights group (phone COS), DND |

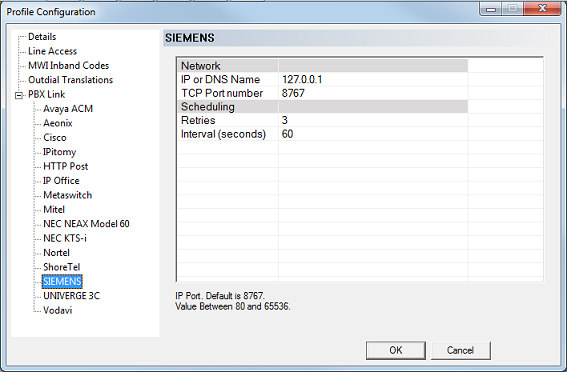

This page is used to configure the 7.00's link to a SIEMENS OpenScape PBX.
The settings are grouped into two categories: Network and Scheduling. Configure the settings as needed and then click OK to save your changes and close the dialog. Or click Cancel to discard any changes and close the dialog.
Network Settings
| Setting | Default | Description |
|---|---|---|
| IP or DNS Name | (blank) | Enter the IP address or domain name of the PBX. |
| TCP Port number | 8767 | Enter the port number used to establish a connection with the SIEMENS PBX. The default for this PBX is 8767. |
Scheduling
| Setting | Default | Description |
|---|---|---|
| Retries | 3 | Enter the number of times to retry after an attempt to send a change request fails. If all attempts fail, the request will be discarded. |
